prefabricated folding foldable mobile portable house manufacture

prefabricated folding foldable mobile portable house specification

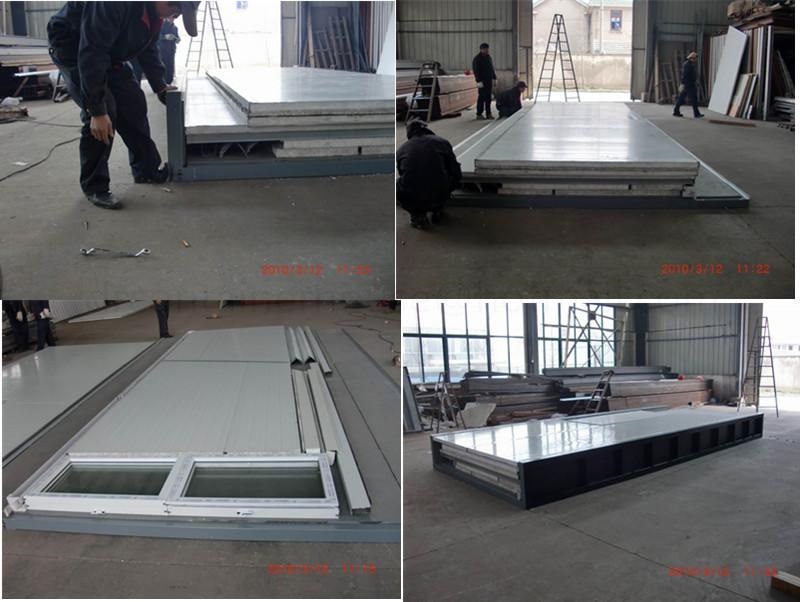

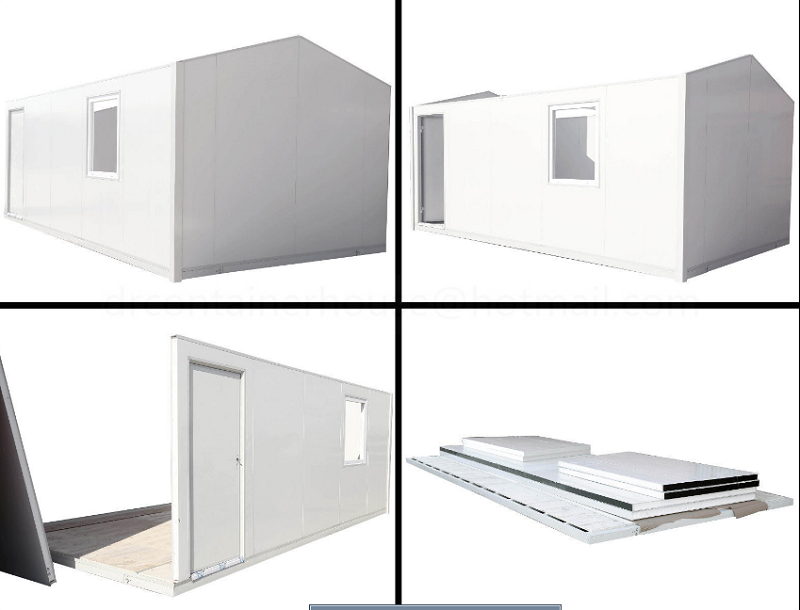

1.the bottom frame is foldable to serve as package of the house,so one house in one package

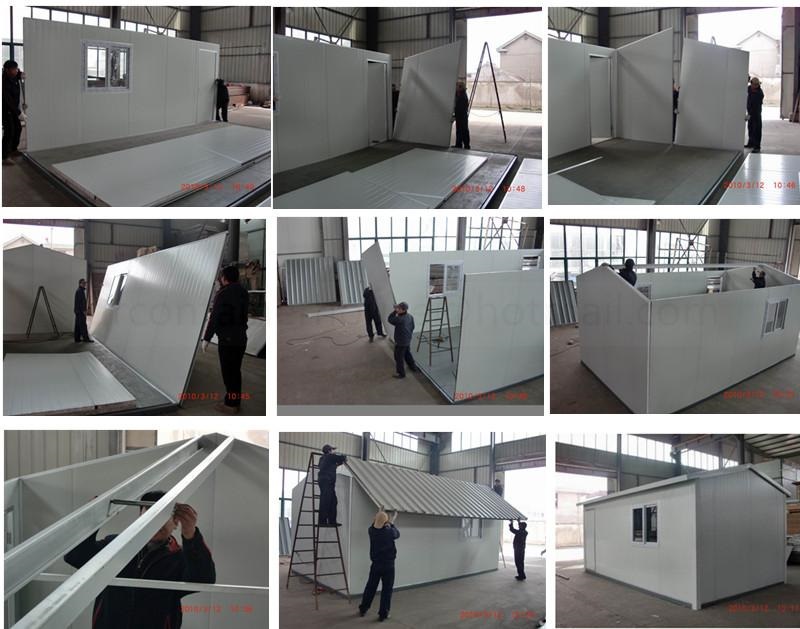

2.use modular sandwich panel for wall and roof,easy to install
3.fully insulated
4.can be combined to make a bigger room
5.widly used as tiny house,granny flat,site office,etc
6.size:W3300*L5800*H2380 wall heigh(2680 ceiling height
package size:W2250*L5800*H625mm,weight 1200kg
7.one 20ft container can load 3 units,one 40HC container can load 8 units

techincal specification

wind load:120km/h
snow load:20cm dry snow
seismic load:7 grade
bearing load:150-200kg/m2

1.frame of prefabricated folding foldable mobile portable house

galvanized tube steel,can be folded to serve as package for one modular house

2.wall&roof of collapsible container house

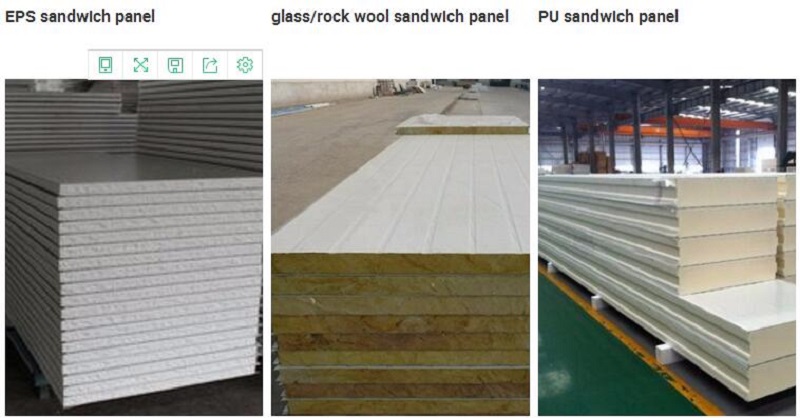

50mm eps sandwich panel is standard material for wall
optional thickness 75mm,100mm.optional insulation eps,glass wool,rock wool,polyuranthane

3.floor

MGO board works as the bottom floor tile
and PVC tile,carpet or wood floor and be added on top of MGO board

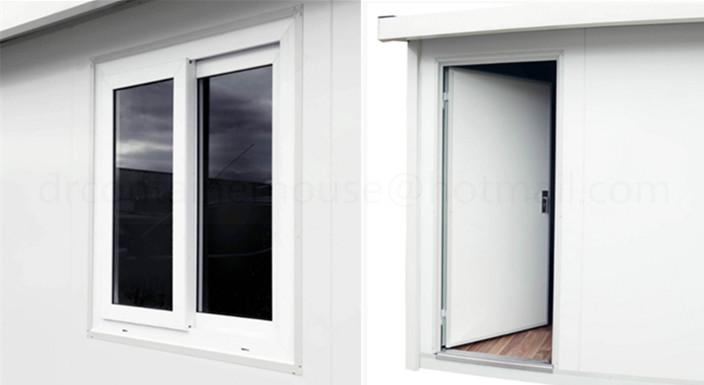

4.window and door

standard window:PVC sliding window single glazed
standard door:steel security door

5.layout

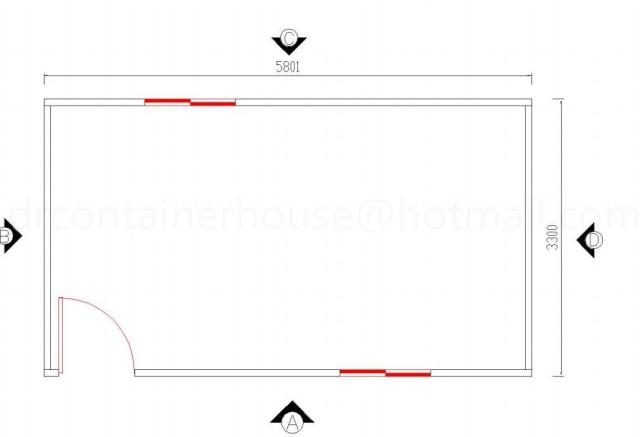

open room

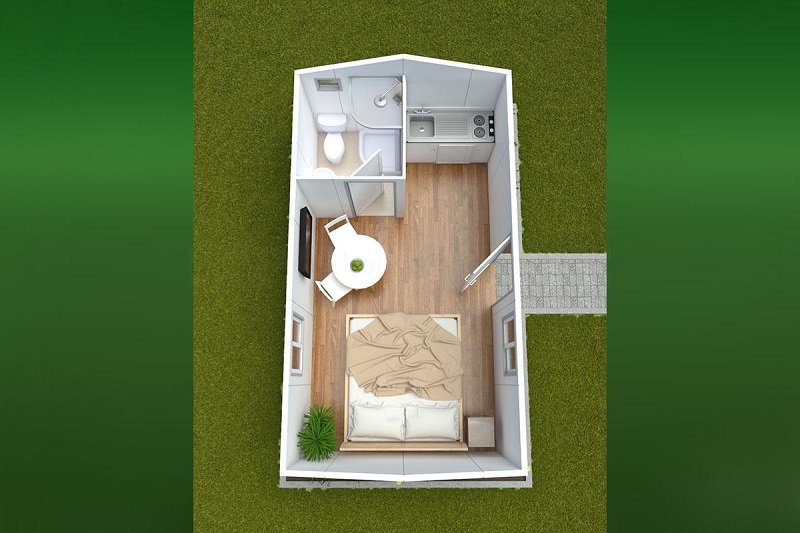

one bedroom,one bathroom,one kitchen

office
