prefabricated kit house philippines granny flat

payment terms:T/T,L/C
lead time:30 days
MOQ:1 set
design:customized

prefabricated kit house philippines granny flat with following advantage

Low Cost Residential | Worker accommodation | Military | Office and Administration | Education | Emergency Facility | Mining | Commercial Buildings | Exploration | Labour accommodation | Remote Operations

1. galvanized frame with powder coating for extra anti rust quality.

2. strong = main frame thickness is 2-3mm
3. with bigger size
standard flat pack container house is W2.25*L5.8*H2.60m or W2.438*L6.055*H2.6m
our this kind container house is with bigger size W3M*L5.95M*H2.8M
4. doesn't need a crane for installation as the 3m X 5.95m container house
is totally disasembled to easy handled sections and all that is required is re assembly.
5. they can be combined to make a bigger units or stacked 2-3 levels
6. widely used for accormmodation,office,bathroom etc

7.Because of big promotion now, these container houses are with a very competitive price

specification of prefabricated kit house philippines granny flat as follows

check our video on youtube as follows

1.techincal specification

wind load:170km/h
snow load:20cm dry snow
seismic load:7 grade
bearing load:150-200kg/m2
2.frame of collapsible container house
main top and bottom frame,post is 2.3mm galvanized frame with power coating,which is hard to get rusted
top and bottom are all bolt connection which makes the house take less space in container,and don't need crane to install

3.wall&roof of collapsible container house

50mm eps sandwich panel is standard material for wall
optional thickness 75mm,100mm.optional insulation glass wool,rock wool,polyuranthane
prefabricated ready made contaienr homes duplex house plans photo

4.floor
MGO board works as the bottom floor tile
and PVC tile,carpet or wood floor and be added on top of MGO board
prefabricated ready made contaienr homes duplex house plans photo

5.window and door of collapsible container house.
standard window:PVC sliding window single glazed
swing window,and double glazed type is also available
standard door:steel security door
glass hinged and sliding door is also available
prefabricated ready made contaienr homes duplex house plans photo

6.electricity,plumbing furniture.
electricity:we sugguest you buy locally
plumbing and furniture:can supply according to your request

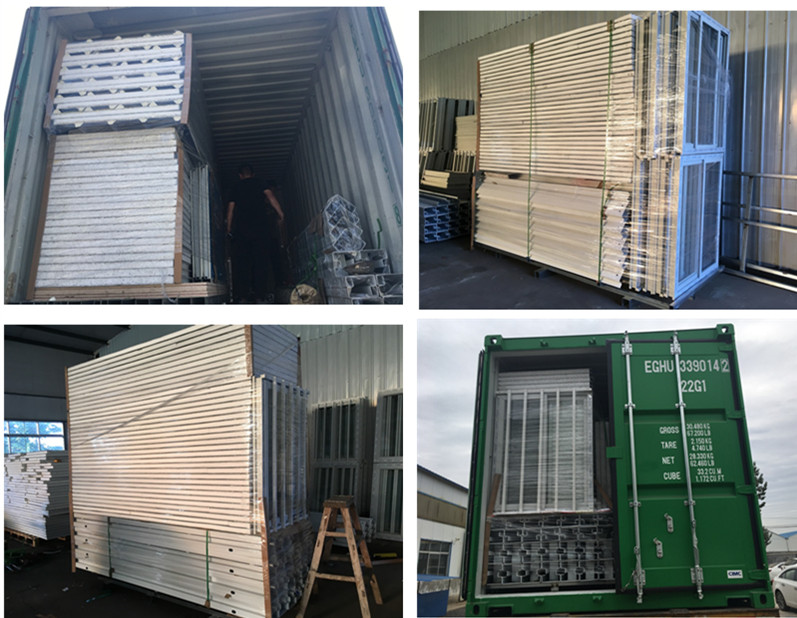

7.package

for only the frame

1*20ft container can load 20 units

1*40HC container can load 50 units

for the full house

1*20ft container can load 5 units

1*40HC container can load 12 units

company information

Laizhou Dingrong steel structure CO.,Ltd is located in laizhou city shandong province.it is specialized in manufacturing,
installing container house,prefab house,steel structure warehouse workshop,mobile homes,modular house etc.
We provide one-stop solution for clients.such as providing all furniture,solar power system,electricity,plumbling for prefab house.
sending workers/engineers to install the modular house/steel structure warehouse for clients
We have advanced facilities and technologies for container house,which makes our quality and price very competitive in this field
dingrong's houses have been sold to australia,new zealand,soth africa,USA,UAE,malaysia etc 50 countries
Dingrong,let everyone lives in their dream house
